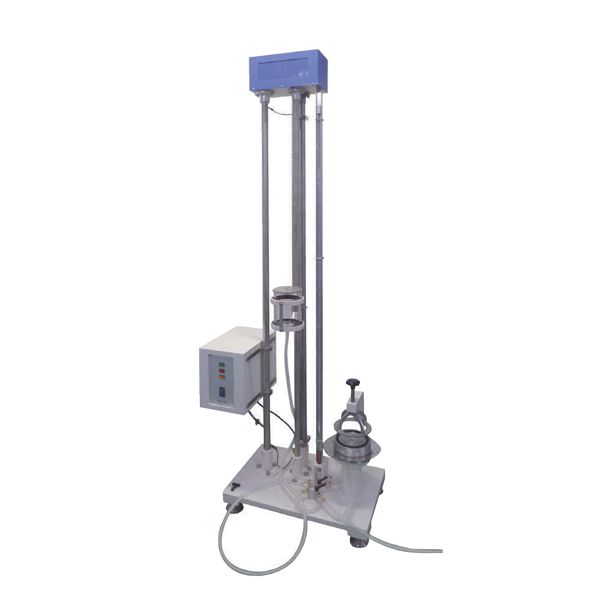

This tester is to conductA Method (Low Water Pressure) water penetration tests (Hydrostatic Fluid Pressure Method). The test specimen is clamped and applied water which the amount is increased at a constant speed, and the operator is to measure the water level when the water flows out from 3 places of the back side of the test specimen. The tester can also conduct Constant Water Pressure Method test and Water Leakage Method tests.
JIS-L1092, 150-811
Product Description
This tester is to conductA Method (Low Water Pressure) water penetration tests (Hydrostatic Fluid Pressure Method). The test specimen is clamped and applied water which the amount is increased at a constant speed, and the operator is to measure the water level when the water flows out from 3 places of the back side of the test specimen. The tester can also conduct Constant Water Pressure Method test and Water Leakage Method tests.
Specification
| Water Column | 1 m or 1.5m |
| Manometer | 1,000 mmH20 or 1,500 mmH20 (Scale 1 mmH20) |
| Pressing Speed | 10 ± 0.5 em/min or 60 ± 3 em/min |
| Specimen | 150 x 150 mm |
| Clamp | Inner cp113 mm (Effective Area 100 em”) |
| Power Source | AC 100 V, 1-Phase, 3 A, 50/60 Hz |
| Dimensions/ Weight | W500 x D350 x H1,BOO mm/70 kg |
| (Approx.) |
