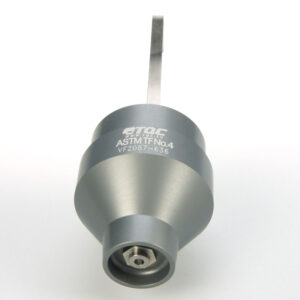

Viscosity Cup Immersion Ford is a titanium anodized aluminum viscosity cup with stainless steel inner cavity fixed nozzle and handle. Ideal for measuring coatings and other fluids during application or production.The process of flow through an orifice can often be used as a relative measurement and classification of viscosity. This measured kinematic viscosity is generally expressed in seconds of flow time which can be converted into Centistokes using a viscosity disc calculator. Dip cups can be used to provide a quick viscosity measurement on the shop floor or on site.
Compatible with ASTM D 1200
Product Description
- Each cup has a long loop handle to allow the cup to be dipped by hand into a liquid container, which makes it easy to quickly check and adjust the viscosity of many different type of liquids.
- The design of the cup and orifice eliminate hard to clean recesses.
- TQC Sheen viscosity cups are made under the continuing quality control procedures.
- Each cup is provided with an engraved unique serial number.
Specification
- Cup: titanium anodized aluminum, 103.5 cm³
- Nozzle: stainless steel, fixed
- Handle: stainless steel
- Complies with: ASTM D1200
- Weight: 173gram
- Maximum Width: 63 mm
- Cup height: 73 mm
- Total height: 253 mm
| Article Number | Product Descr. | Ø Orifice (mm) | Visc. Range (cSt) | Flow times (sec) |
| VF2087 | No 4 | 4.1 | 70-370 | 30-100 |
Download catalog
TQC-Sheen Viscosity Cup ASTM D1200 Immersion Ford catalog (pdf)
