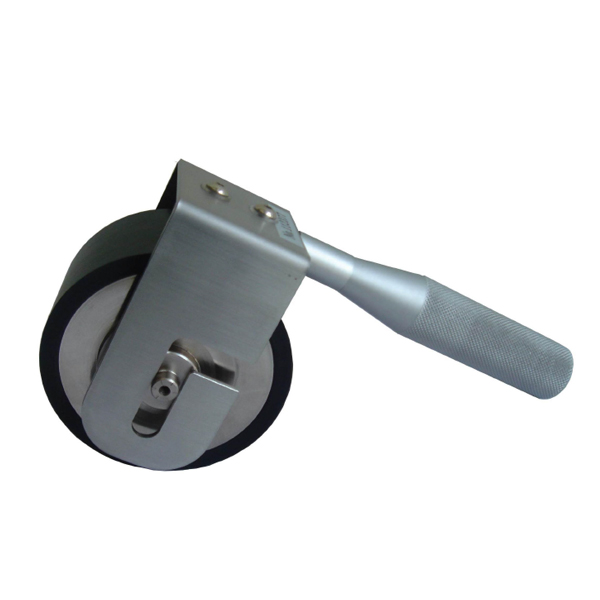

QC-803A is controlled by hand, hold roller and slightly go up, let fixed base leave the axle center, this moment the roller equals to standard weight, with 300mm/min speed back and forth roll through specimen to let it roll bonding with adhesive objects.

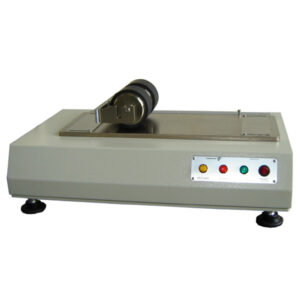

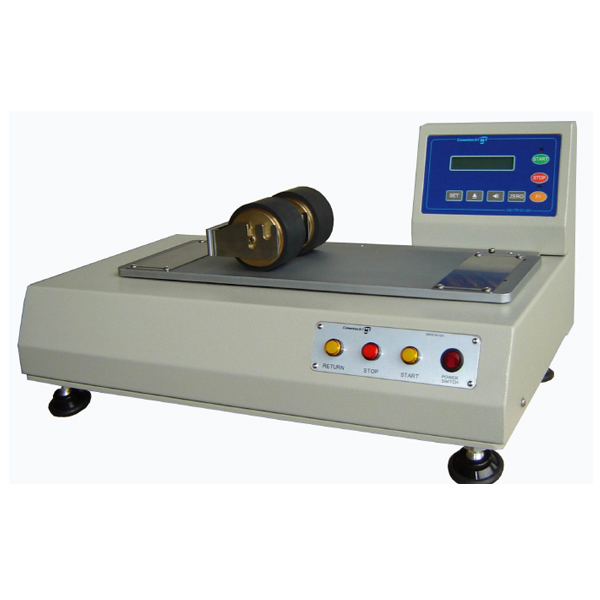

QC-803K and QC-803J is controlled by electronic, put specimen on orbit of rolling
wheel, press start button, with 300mm/min or setting speed back and forth roll through specimen one time.
JIS-C2107, Z0237,PSTC 7
Product Description
QC-803A is controlled by hand, hold roller and slightly go up, let fixed base leave the axle center, this moment the roller equals to standard weight, with 300mm/min speed back and forth roll through specimen to let it roll bonding with adhesive objects.
QC-803K and QC-803J is controlled by electronic, put specimen on orbit of rolling
wheel, press start button, with 300mm/min or setting speed back and forth roll through specimen one time.
Industry
Tape
Specification
| Model | QC-803A | QC-803J | QC-803K |
| Weight of roller | 4.5LB | 4.5LB (two roller can be used at the same time) | |
| Surface with rubber 80 ±5°(Shore A)，Rubber with thickness 6 mm | |||
| Speed of roller | Control by hand | 50 ~ 600 mm/min (adjustable) |
300 mm/min |
| Stroke | Control by hand | 50 ~ 250mm adjustable (Make a round trip automatically) | |
| Width of Roller | 45mm | 45mm | 45mm |
| Diameter of Roller | 95mm | 95mm | 95mm |
| Roll cover: Rubber to hardness scale | Shore A ((80°±5°) | Shore A ((80°±5°) | Shore A ((80°±5°) |
| Power | NA | Single phase，100 ~ 240V | |
| Dimension | 13 × 22 × 8 cm | 62 × 36 × 31 cm | 62 × 36 × 25 cm |
| Weight | 2.7 kg | 42 kg | 38 kg |
