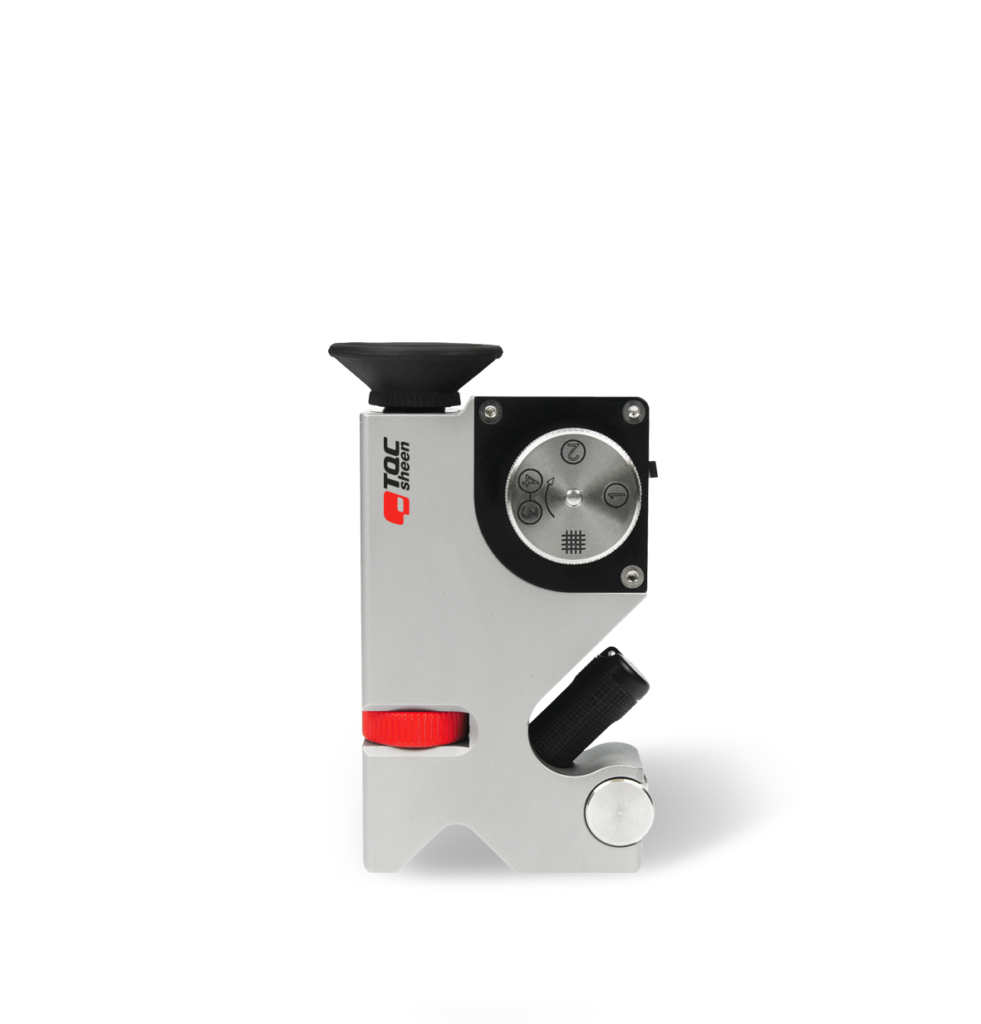

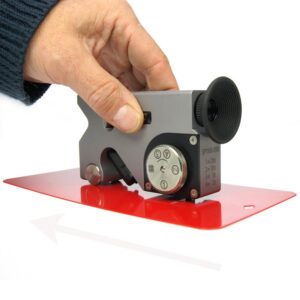

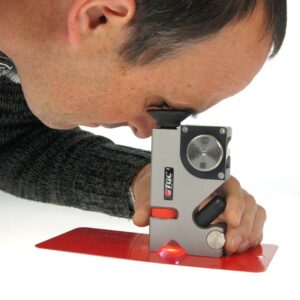

The TQC SP1100 SuperPIG is a destructive precision tool for inspection and thickness measurement on single or multiple coats on virtually all substrates, including wood, plastics, metals etc.
Product Description
- Made of Titanium anodised aluminium
- Three knife sizes and one crosscut knife (optional) in one holder

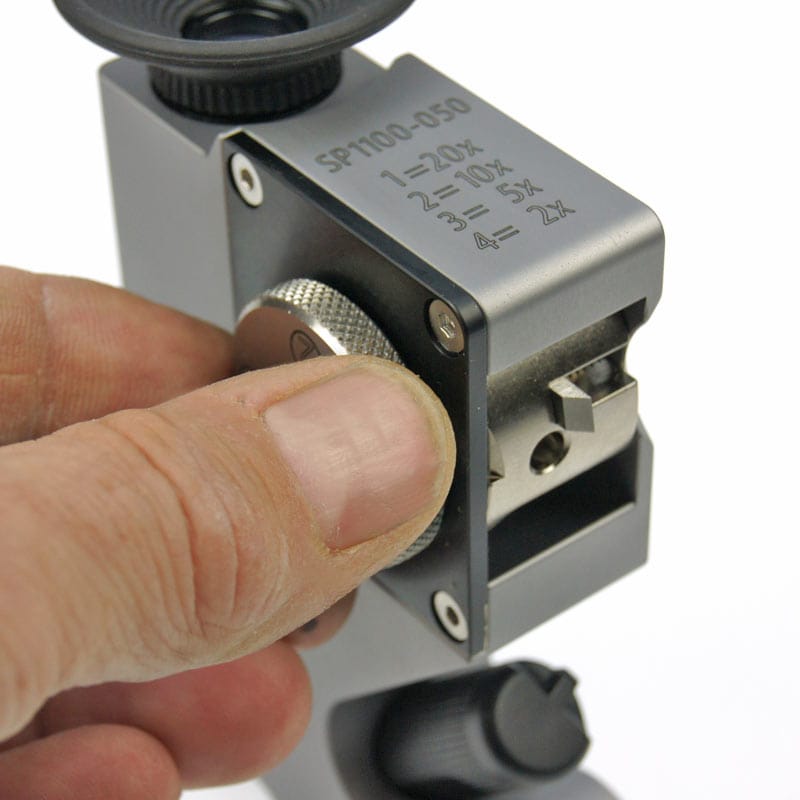

- Ergonomic design: revolving-system to change knifes

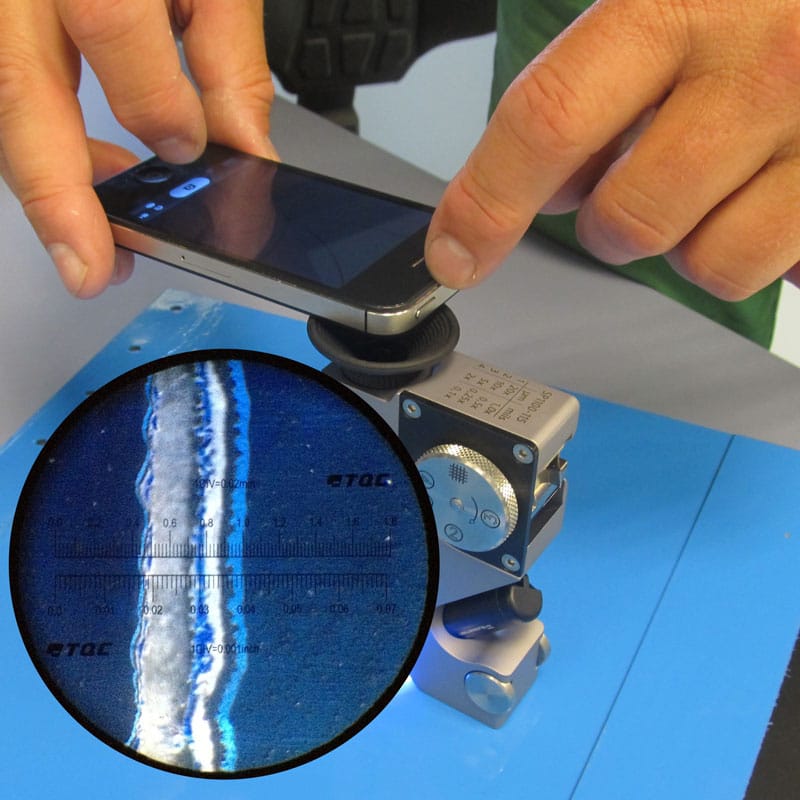

- Bright white LED lights ensure clear vision through the microscope
- Small size eases use in corners

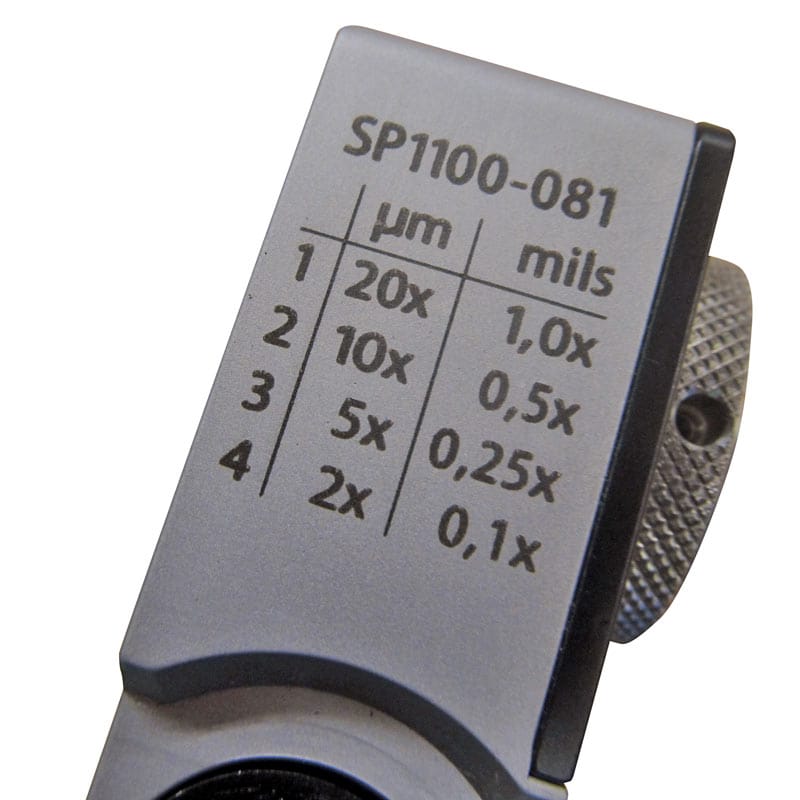

- Engraved scaling (D-factor) for easy calculations
- Rubber protective eye cup
Specification
- Range : 2 to 1800 microns / 0,1 to 70 mils
- Microscope: Magnification 50X (with graduation-scale)
- Scale range: 0,00 – 1,8 mm / 0,00 – 0,07 inch (rectilinear measured)
- Variation: Accuracy depends on chisel cut angle and users reading
- Battery: 4 x AG13/LR44
- Material: Titanium anodised aluminium
- Width: 25mm
- Height: 110mm
- Length: 65mm
