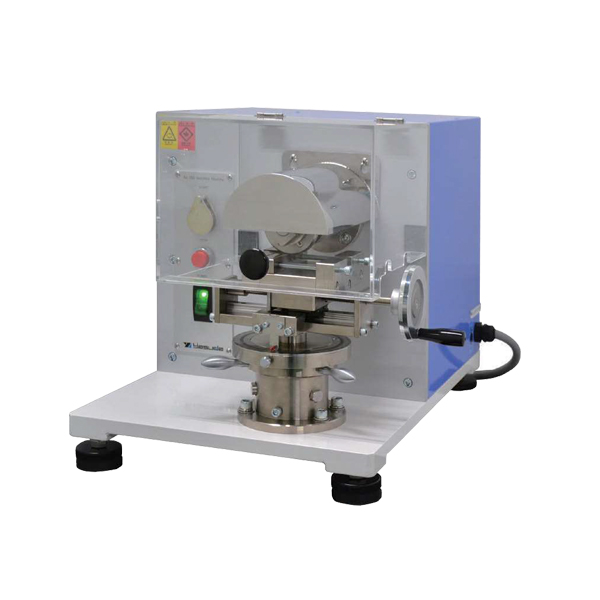

This machine is used to notch test specimens for Charpy and lzod impact tests. When replacing the notch cutter blade, the blade can be independently taken off, adding to low running costs.
JIS-K7144, IS0-2818
Product Description
This machine is used to notch test specimens for Charpy and lzod impact tests. When replacing the notch cutter blade, the blade can be independently taken off, adding to low running costs.
Specification
| Clamp | Opening Max. 40 mm (Standard: 4 mm x 10 pes), Feed Speed 1.75 mm/1 turn |
| Cutter Rotation | |
| Speed (Approx.) | 600 rpm |
| Notch Depth | Manual, Range 0 to 4 mm (Scale 0.01 mm) |
| Single Tooth lip, Outer Diameter <P75 mm, T5 mm, Top Angle 45′, Top R0.25 mm, | |
| V-Notch Cutter | Material: High Speed Steel (Option: Cemented Carbide) |
| Option | Pneumatic Clamp, U-Notch Cutter |
| Power Source | AC 100 V, 1-Phase, 15 A, 50/60 Hz |
| Dimensions/ Weight | W420 x D530 x H380 mm/ 50 kg |
| (Approx.) |
