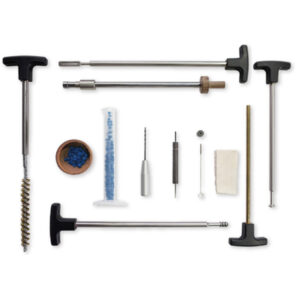

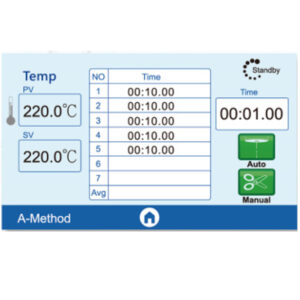

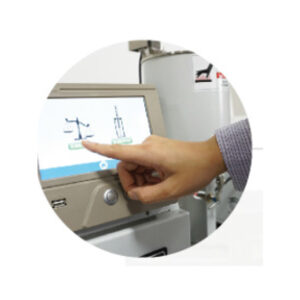

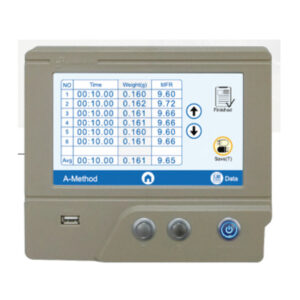

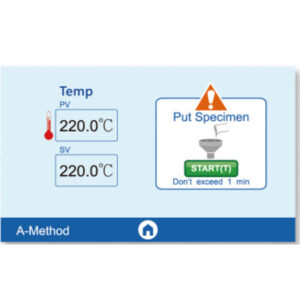

This  tester can  test  thermoplastic melt mass  flow rate(MFR) and  melt volume flow rate(MVR), QC-6525 can perform ISO/ASTM standards test methods, equip with touch panel that guide user  to precisely and  smoothly proceed with test. It also  has analysis function and  flash drive save function. Optional accessories can be selected according to different materials properties, such  as high flow material block mechanism or  MVR  volume test mechanism to proceed with various tests.

ASTMD1238  D3364 , ISO 1133  · GB – T3682


Product Description

This  tester can  test  thermoplastic melt mass  flow rate(MFR) and  melt volume flow rate(MVR), QC-6525 can perform ISO/ASTM standards test methods, equip with touch panel that guide user  to precisely and  smoothly proceed with test. It also  has analysis function and  flash drive save function. Optional accessories can be selected according to different materials properties, such  as high flow material block mechanism or  MVR  volume test mechanism to proceed with various tests.


Specification

Use temperature 50-360 °C
Test Temperature,T Maximum allowable deviation from required test temperature
At (10±1) mm above the top From (10±1) mm to (70±1) mm above the top
surface of the standard die surface of the standard die
125 =<T<250 ±1 °C ±2 °C
250 =< T<300 ±1 °C ±2.5 °C
300 =< T ±1 °C ±3 °C
Counter accuracy ±0.01s
Piston push rod weight  100g

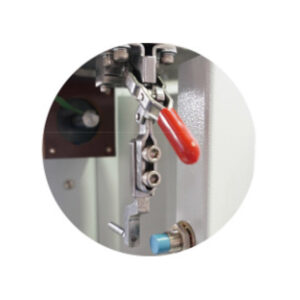

Automatic cut Interval time 1-300 seconds can be set
Heater size 9.55±0.01mm
Hole mold 2.095±0.005mm

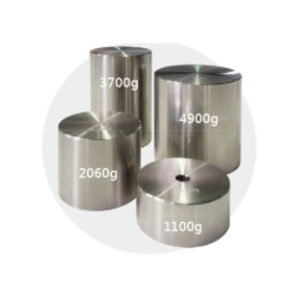

Counter weight Stainless steel 1100g, 2060g , 3700g ,4900g , 9900g ,12400g ,19900g , 21500g
(Optional) (rod weight 100g)
Weight 40Kg(machine weight)
Dimension 47x38x48cm (47x38x60 with MVR part)
Power 220 V Single phase 50 Hz/60Hz, 7A


Download catalog

QC-625s Melt Flow index tester catalog (pdf)
