The Mullen Burst Tester is used for samples such as base paper, corrugating paper, leather, syn­ thetic leather

IS0-2759, GB/T 6545, JIS-P8112, JIS-L1018, ASTM 03786, TAPPI-T403, TAPPI -T810, TAPPI -T807


Product Description

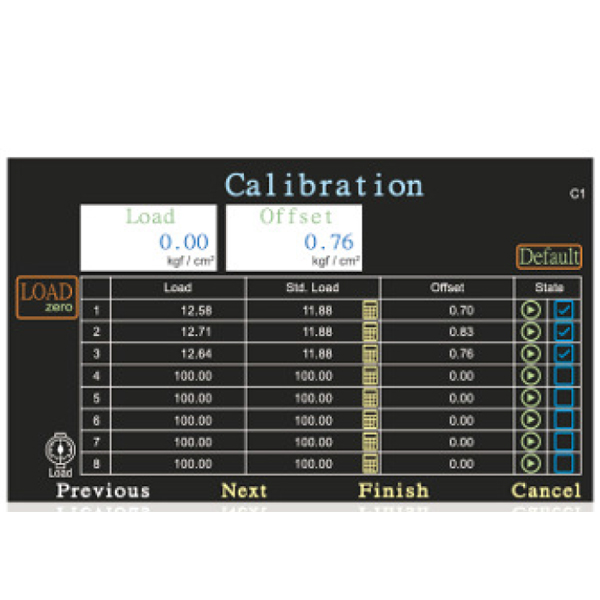

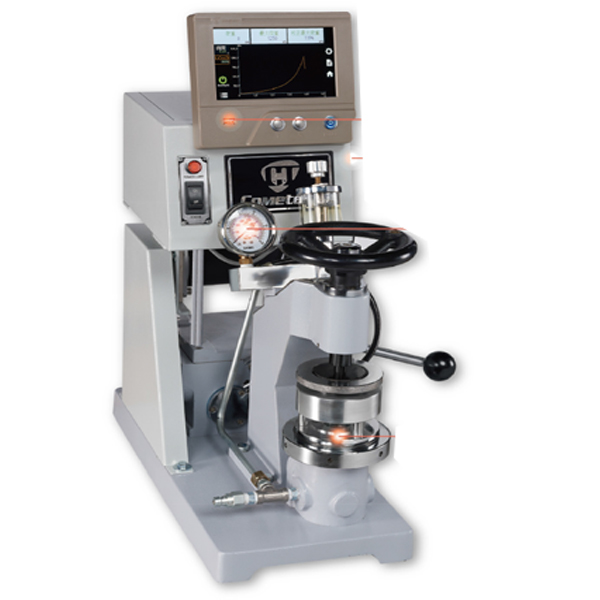

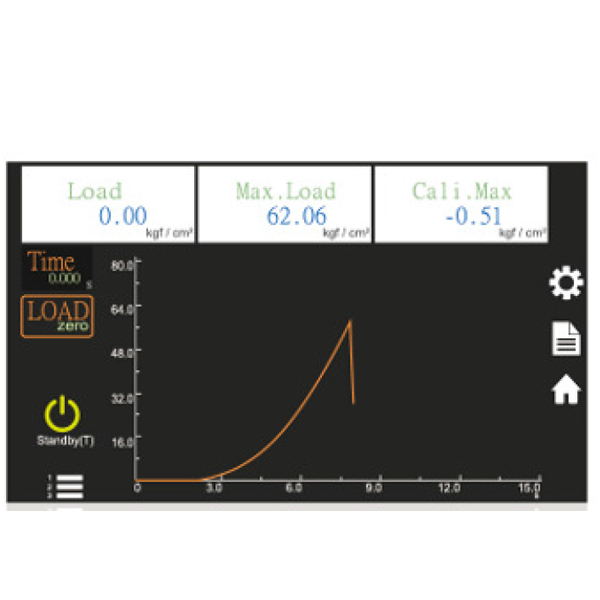

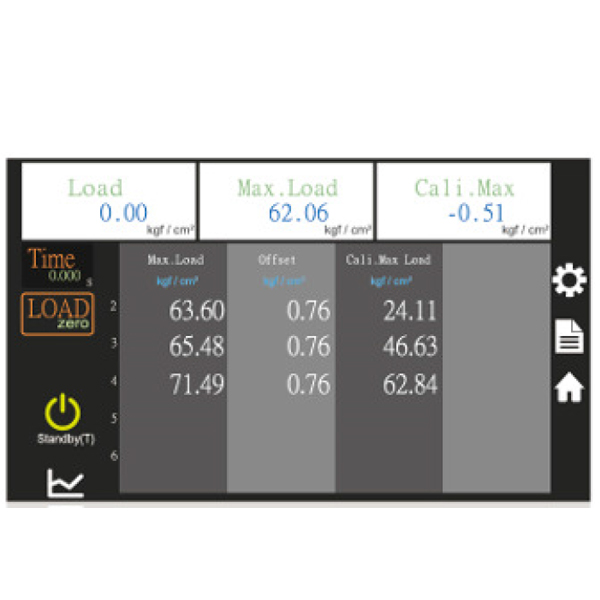

The Mullen Burst Tester is used for samples such as base paper, corrugating paper, leather, syn­ thetic leather. This tester is a digital type that features automatic compensation mechanism and sensor calibration to obtain a more accurate test result. The real-time force graph shows current status in various units for user ‘ s choice, facilitating user ‘ s data reading.


Specification

TypeQC-116(High pressure)QC-116(Low pressure)Textile
Test speed170 ± 15 ml/min95 ± 5 ml/min98 ± 4 ml/min
Pressure displayD1Control touch panel
Capacity (kg/cm2)75kg/cm2
Platen diameter UPPER 31.5 ± 0.05mm30.5± 0.05mm30.5± 0.05mm
Platen diameter LOWER 31.5 ± 0.05mm33.1± 0.05mm30.5± 0.05mm
Gear positionPressurization,neutral,return
Dimension53  x   33 x   58 cm
 Weight around60 kg
PowerSingle phase 110-240VAC, 5A


Download catalog

QC-116 Mullen Burst tester catalog (pdf)
