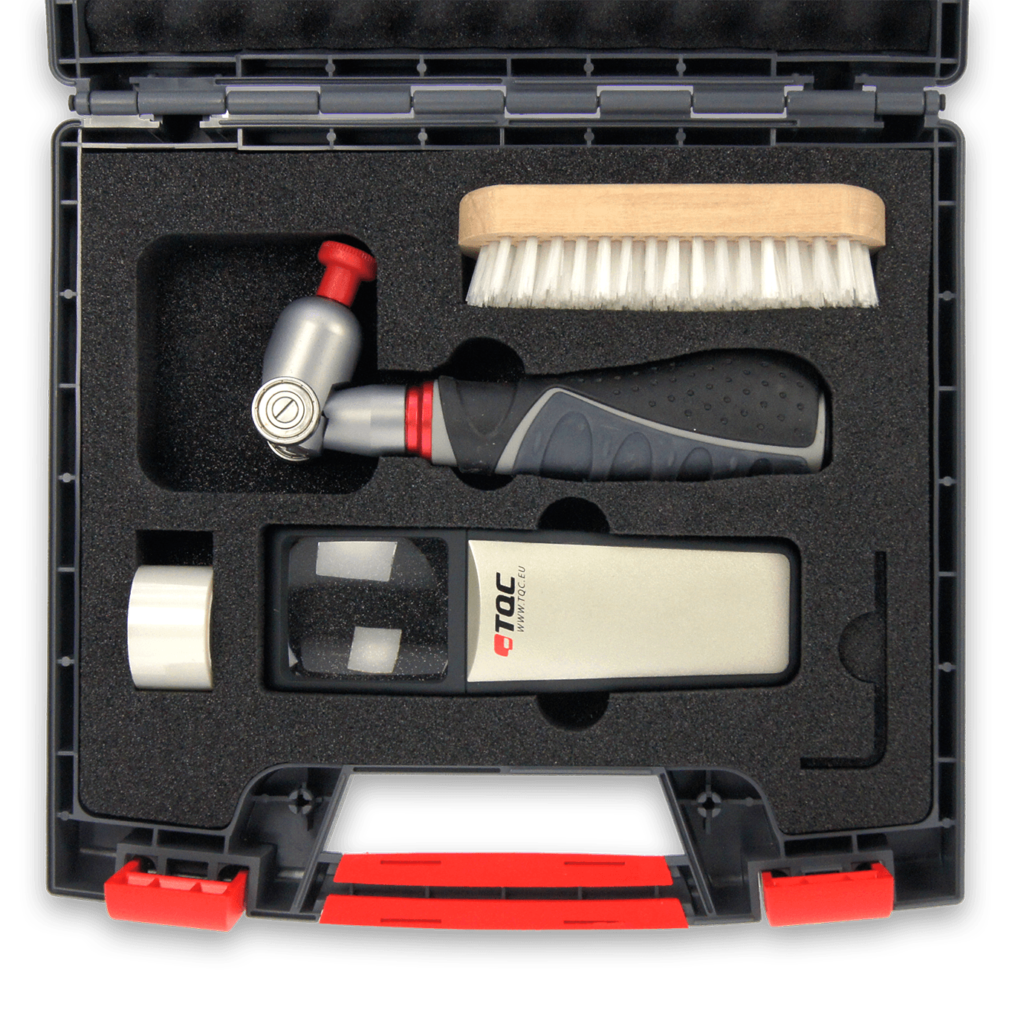

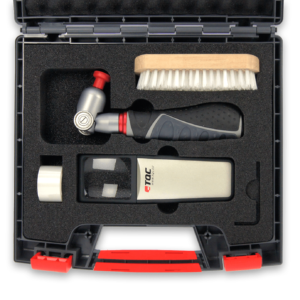

The TQC Cross Cut Adhesion Test KIT (CC3000) is used to test the adhesion of dry coats of paint on their substrate by means of a series of cuts through the coating. Two series of parallel cuts cross angled to each other to obtain a pattern of 25 or 100 similar squares. The ruled area is evaluated by using a table chart after a short treatment with a stiff brush, or adhesive tape for hard substrates.


Product Description

Features :

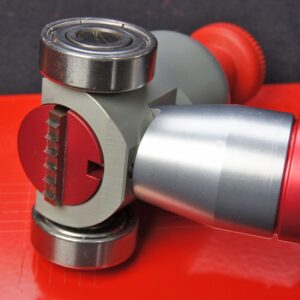

•The blade holder is kept at a set distance from the surface with the aid of two wheels (ball bearings). Reproducible test results guaranteed.

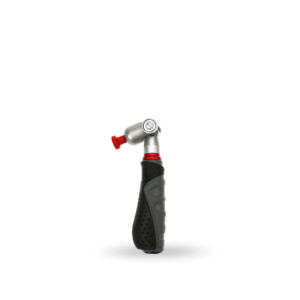

•Ergonomically shaped handle

•Easy to change cutting knife

•Wide range of knife sizes available for different coating thicknesses and substrates and according to different standards.


Specification


Download catalog

Cross cut CC3000 TQCSheen catalog (pdf)
