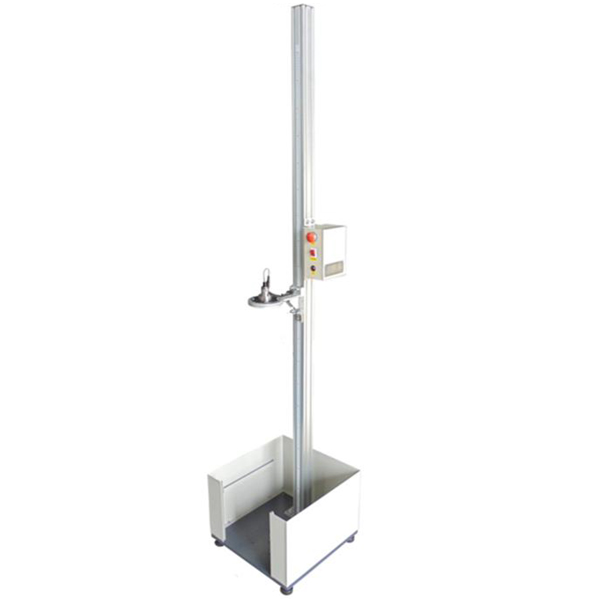

The specimen is placed on the platform of machine. Choose a designated size of steel ball to fall freely from a height, then the steel ball will impact on specimen’s surface. To observe the specimen of damaged condition on its surface. The test height and the size of steel ball can be adjusted according to the test condition of the specimen.

JIS-A5403, K6745


Product Description

The specimen is placed on the platform of machine. Choose a designated size of steel ball to fall freely from a height, then the steel ball will impact on specimen’s surface. To observe the specimen of damaged condition on its surface. The test height and the size of steel ball can be adjusted according to the test condition of the specimen.

1. Red laser dot help to pre-determine the dropping point of the steel ball
2. Protection wall around the testing area to prevent dropping ball popping out


Specification

Testing height: 5~200 cm (adjustable by ruler)
Ball dropping control Controlled by electromagnetic
Weight of Steel ball 500g x 1, 1000g x 1 (or indicated)
Specimen grip According to specimen type, we could provide customization for purchasing
Feature 1.   Red laser dot help to pre-determine the dropping point
of the steel ball
2.   Protection wall around the testing area to prevent dropping ball popping out
Base plate 42 × 29 cm (or indicated)
Dimension 46 × 46 × 215 cm
Weight 40 kg
Power Single Phase 100~240 VAC
